Intermediate Products Container (IPC) * Cylinder SS-316 containers with conical bottom and socket for     handling by IPC lifter. * Lid having clamping ring and suction pipe inlet with tight fitting cover. * Fitted with diaphragm/butterfly valve as required. * Pipe trolley with UHMW Polymer wheels on swivel brackets * Compatible with all types of IPC lifters. Service Floor Mounted IPC Lifter * Lift IPC off the trolley on ground level, swings it through required arc and    holds the IPC suspended over compression machine  charging port. * Only Stainless Steel Lifting cum rotating shaft enters the main    equipment floor from the ceiling through a bush. * Electro hydraulic lifting and indexing mechanism and guide masts to be    located on the service floor above the equipment floor.  Components in    service floor to be in m.s. for cost saving. Programmed push button control    in SS control station in the equipment floor. No Floor space in the equipment   floor occupied. * Fully automatic.

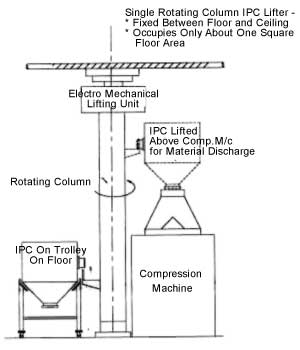

Single Rotating Column IPC Lifter

         * Fixed between ground floor and the ceiling of the equipment floor suitable where
         no service floor is available. Programmed push button Controls.
         Occupies only about one square foot floor area in the equipment floor.
         Tapered roller bearing for effortless manual rotation. Column and
          lifting boom in  SS-304. Overhead electromechanical drive SS-304 clad.

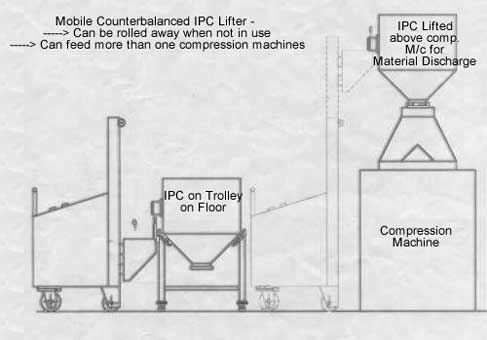

Mobile Counterbalaced IPC Lifter

        One lifter can serve more than one compression machine.
        Can be rolled away after completing work for parking in convenient
        location. Masts and lifting boom in SS-304. Electrohydraulic power
        pack and m.s. counterweight to be clad in SS-304. UHMW polymer
        wheels with ball bearing.


     --------------------------------------------------------------------------------------------------------------------
